FEATURES
The M-7X is the upgraded version of M-7 RGBA LED fog machine. With the improved heater, it can deliver more powerful, higher volume, and much quicker fog bursts.
‧Neutrik TRUE 1 Connector
‧RGBA LEDs on board.
‧Optional Wireless DMX available.
‧New structure design for multiple angle rigging
‧Auto-sensing frequency
‧Fluid tank compartment for ease of transportation
‧Huge output volume with high pigments LED colors
‧Great fit for Stage purpose
‧Generate fog at any orientation
SPECIFICATION
| Rated Voltage | US model : AC 100-120V, 50/60Hz 13A EU model : AC 220-240V, 50/60Hz 6.5A |
| Rated Power | 1516W |
| Light Source | 22 x 3W LED (5Red, 6Green, 6Blue, 5Amber) |
| Warm Up Time | 7 minutes (approx.) |
| Fluid Consumption | 200 ml/min |
| Fluid Tank Capacity | 2.4 Liters (0.63 gallon) |
| Compatible fluid | Antari FLC Fog Fluid |
| Ambient Temp Range | 0°C – 40°C (32°F – 104°F) |
| Output | 10 meters height |
| Control | Manual、Timer 、DMX 512、Master / Slave、Wireless、 Wireless DMX (Optional) |
| DMX Channels | 9 channels |

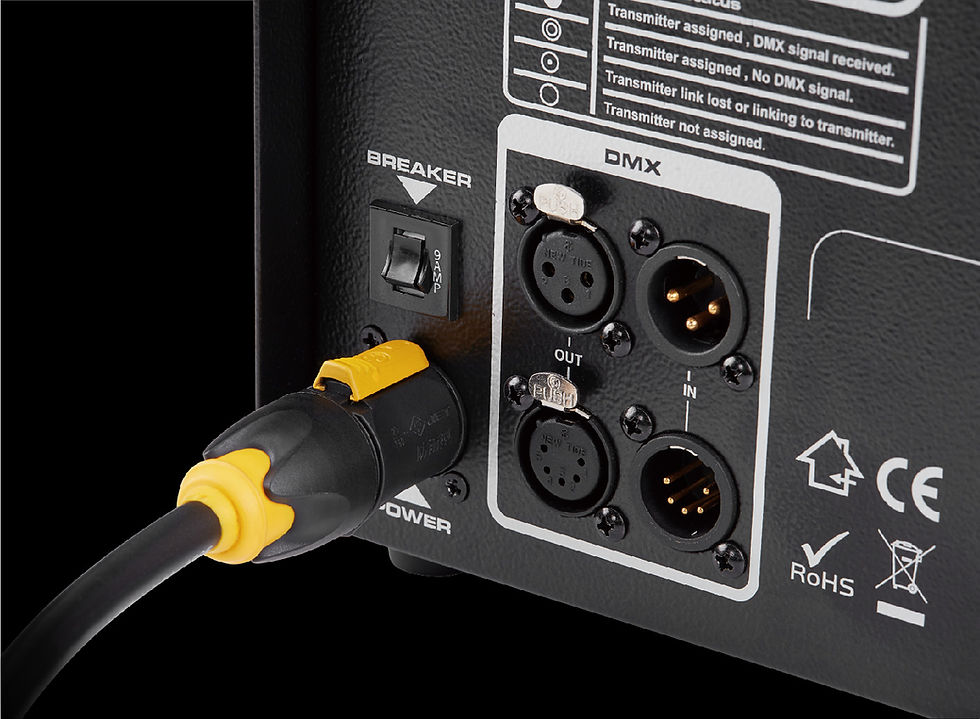

| Connection | Neutrik TRUE 1 Connector (Power) XLR 3-pin & 5-pin (DMX) |
| Included Accessories | W-2 Wireless Radio Transmitter |
| Optional Accessories | TIMO-WTR-90 Wireless DMX |
| Dimension | L346 W 193 H383 mm (L 13.62 W 7.6 H 15 inch) |
| Weight | 14 kg (30.8 lbs) |
